Compact, powerful, versatile!

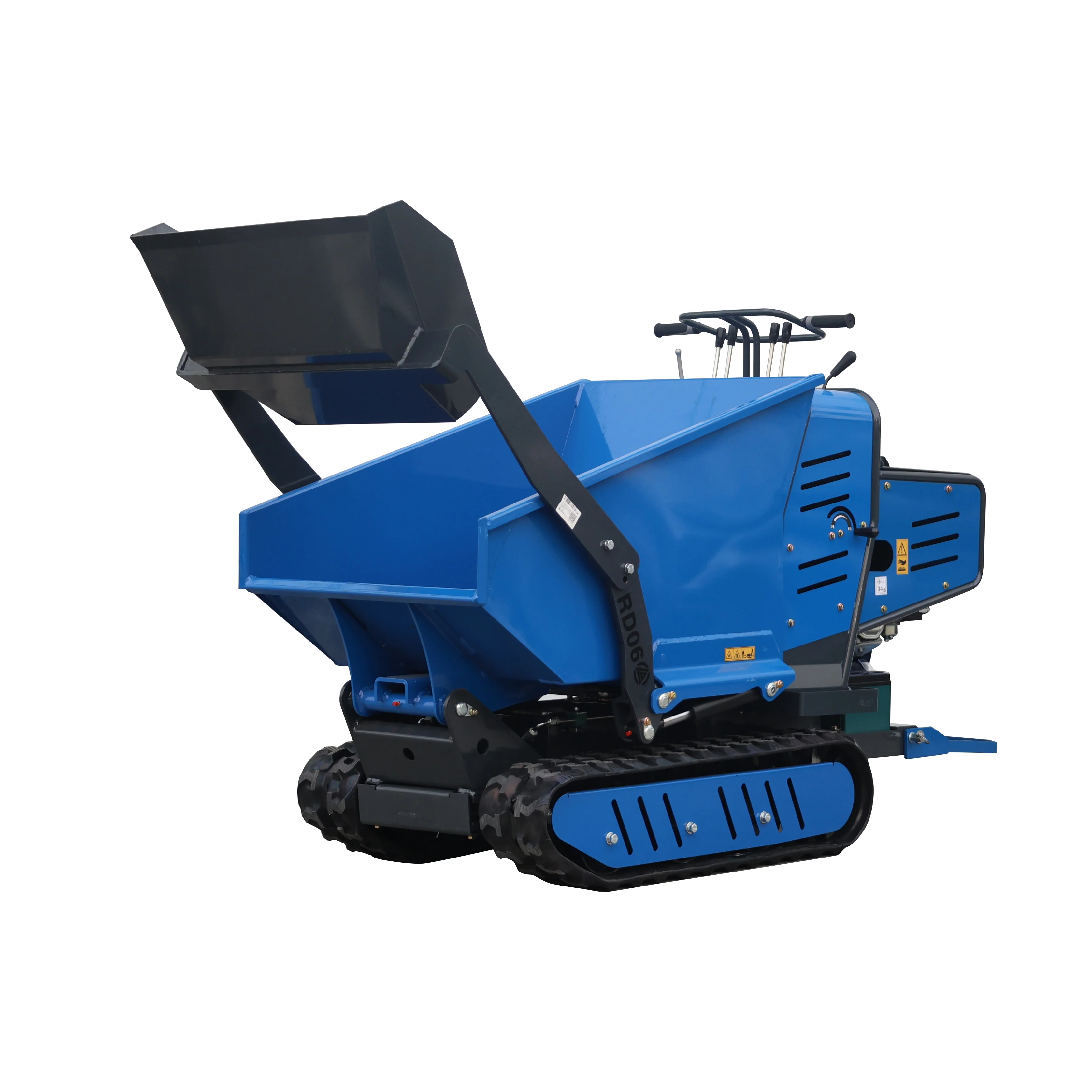

Tracked Dumper RD06 is the ideal solution for construction work, earthmoving tasks, and material transport in rough terrain. Thanks to its compact dimensions, high stability, and easy operation, it delivers high efficiency even in confined spaces.

Whether transporting bulk materials, unloading, or working on uneven ground – the RD06 is easy to operate and low-maintenance.

RD06 – Technical Specifications

Basic Performance Data	EU / US
Operating weight	518 kg / 1139.6 lb
Bucket volume	0.03 m³ / 1.06 ft³
Dump bed capacity	0.27 m³ / 9.5 ft³
Rated load capacity	350 kg / 770 lb
Travel speed (low / high)	0–4 km/h / 0–2.48 mph
Gradeability	30 % / 30 %
Ground pressure	19.55 kPa / 408.4 psf
Maximum dumping height	356 mm / 14 in
Maximum dumping reach	272 mm / 10.7 in
Minimum ground clearance	70 mm / 2.8 in

Engine	EU / US
Manufacturer	Briggs & Stratton
Model	XR2100
Maximum power	13.6 PS (10 kW) / 13.4 hp
Maximum speed	3600 rpm / 3600 rpm
Displacement	0.42 L / 0.11 gal
Number of cylinders	1 / 1
Cooling	Water-cooled
Engine oil capacity (change)	1.2 L / 0.32 gal
Fuel type	Gasoline
Fuel grade	92#
Theoretical fuel consumption	0.8–1.2 L/h

Dimensions	EU / US
Transport length	1670 mm / 65.7 in
Transport width	780 mm / 30.7 in
Transport height	1200 mm / 47.2 in
Dump bed width	700 mm / 27.6 in

Hydraulic System	EU / US
Main pump – Type / Model	Gear pump GP51044SLP
Main pump – Manufacturer	Tianjin Walking
Max. flow rate main pump	14.4 + 14.4 L/min
Multi-way valve – Manufacturer	Tengfei
Setting pressure (rated)	16 MPa
Maximum setting pressure	18 MPa
Travel hydraulic motor – Type	Deston BM5-200
Travel hydraulic motor – Manufacturer	Deston
Displacement travel hydraulic motor	200

RD 06
